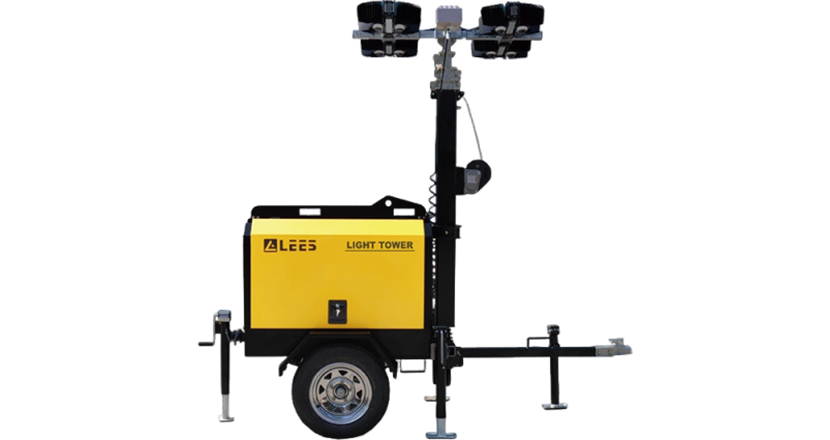

Light Tower

Powered by LEES/Kubota

4 stages mast up to 9 meters

Features & Benefits
Specification
Case study
FAQ
Related Products
Features & Benefits

Wide Lighting Area

LEES’s light tower parallel lamp structure is more efficient than competitive lighting systems and provides up to 50% more light output. The unique top structure of the lamp shade directs up to 10% of previously wasted upward light directly to the work site.


Dual Application

The generator powering the light tower can be used a backup power in emergency situations. There are two receptacles on the light tower mast. You can switch off the lights and then connect another electrical load to get a quality output from the generator.

The receptacles can be configured to your voltage requirement of 120, 230, or 240V.


Advantages of Halide Lamp

The internal structure of the metal halide lamp is unique. The light is produced through the discharge of its internal gasses. There is no filament to break or deteriorate over time and no bulb to throw away.


Safe operation

The mast incorporates a safety feature by not permitting the mast to be raised unless the footbrake is on. If the footbrake is release, the mast will automatically lower to the travel position. The light tower trolley has stabilizers to keep the light tower steady on all surfaces.


Specification Quick Details
MODELKLTK-C7
Mast Height (m)7.5
Frequency(Hz)50
Rated voltage(V)230
Rated power (kW)5.4
Max.Output (kW)5.94
Power Outlet Sockets1*16A
Fuel Consumption (L/H)1.85
Fuel Tank Capacity (L)74
Fuel Tank Hours40
Noise Level (7m)dB(A)76
Weight (KGS)750
Dimension in Operation (L x W x H) mm2850x1105x7500
Dimension in Transport (L x W x H) mm disassembly1370x750x1000
Load Capacity in 20FT (units) disassembly8
Load Capacity in 40HQ (units) disassembly24(16)
EngineKubota
Engine modelZ482
Speed (rpm)3000
Prime Power (kw)8.3
Cooling SystemWater-cooled
Oil capacity2.5
AlternatorSINCRO
Alternator ModelEK2MCT
Continued Power (kVA)6
Excitation modeCapacitor exciter
Alternator InsulationH
Protection GradeIP23
Mast Manual
Section No. (Extened)4
Mast Rotation359°
Mast Extension Time45 seconds
Mast Descend Time30 seconds
Lighting
Type of lightsMetal halide lamp
Number & Power of the lights4*1000W
Mast Lighting & ExtensionManual
Electric (Option)
Light angle turningManual
Luminous flux4*110000=440000
IIIum Area (5 Lux min) ㎡3000
Lamps Rotation75° (Manual)
Protection GlassIP33
Color Temperature4200K
Trailer
Braking System/
Hitch Ball type/O Ring option
Tire Rim Size155R13''
Speed<80km/h


FAQ
Q1:Are you trading company or manufacturer ?
A:We are factory.
Q2:what is your power range of your diesel generator?
A:we can provide power from 8KVA-4000KVA and comprehensive power solutions for you
Q3:How long is your delivery time?
A:4-6 weeks
Q4:What`s your MOQ?
A:1 set.
Q5:What is your terms of payment ?
A:T/T 30% in advance and TT 70% balance paid before shipment.
Q6:What is your warranty period?
A:Our warranty period is 1 year or 1000 running hours whichever comes first. But based on some special project, we can extended our warranty period.
Q7:Do you offer OEM service?
A:Yes.
Q8:How could I trust you?
A:Diesel Service & Supply stands behind the quality of all the generators and industrial power equipment we sell. If you are not convinced by the pictures, videos, check-in reports, load tests, customer experiences and sales associates` knowledge about the generator you are interested in, then we invite you to come visit our expansive yard and shop facility to witness a load test and see the professional operation we have going on here.
Q9:After i receive the genset what should i do ?
A:After you got the generator, please read the operation manual carefully. The User`s Manual come with the generator. With Operation, Installation , maintenance and repair guide.
Related Products

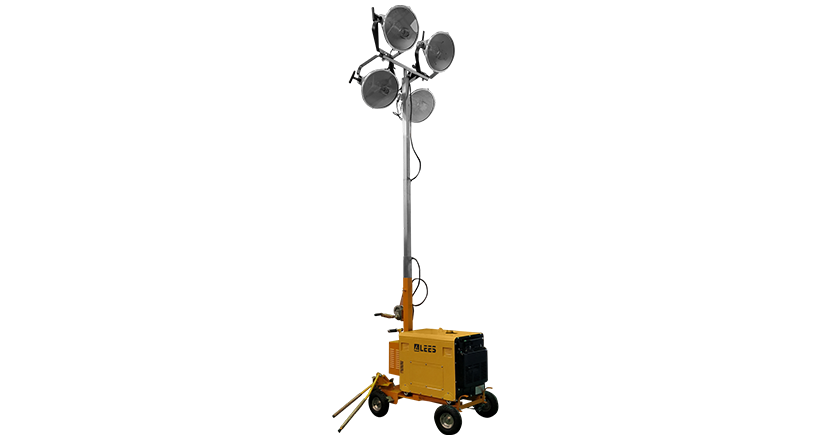

Light Tower
KLT-6700T
Light Tower
KLTK-C7

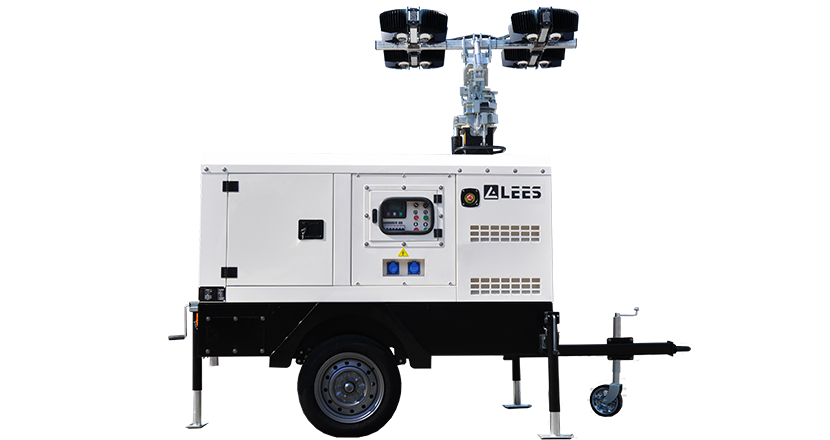

Light Tower
KLTK-H7

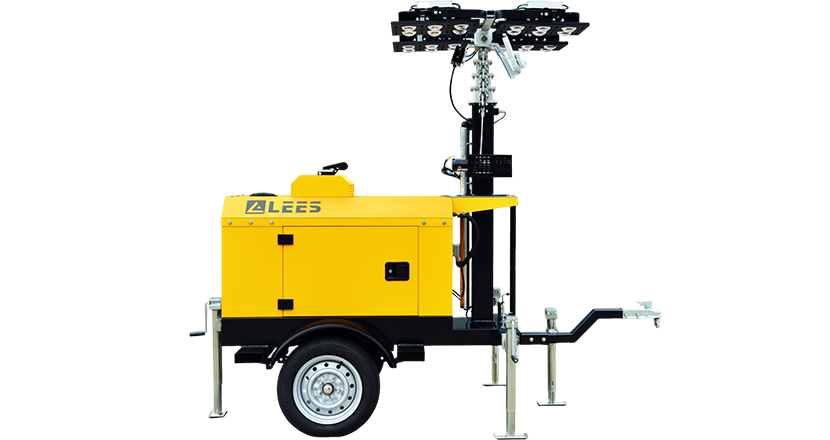

Light Tower
