MWM Series

Highest effciency in its power range

Optimized lube oil management

Features & Benefits
Specification
Case study
FAQ
Related Products
Features & Benefits

Integrated supplier of manufacturing: including sheet metal processing, assembly and production, testing system.

Global Customer service: LEES global after sale service, which make sure customers have a worry free experience.

Strict standards: All gensets complied with ISO 8528-5 Class G3, and the engine is certified by the Environmental Protection Agency EU IIIA.

Quality testing:All diesel gensets will be tested by a detailed test scheme to ensure product quality, including 25% load,50% load,75% load,100% load , 110% load and genset’s protection parameters etc.

High-quality carbon steel canopy:With powder coated painting to deal with canopy, which could be rust-proof, fume-proof and fade-proof.

Super silent(except open type):With unique deep bucket design to reduce the noise level with high quality flame-retardant and sound-absorbing sponge.

Compact structure: With reasonable design, the genset has a low center of gravity and a low height, compact design easy to transport.

Easy to operate: With modular design of control cabinet, flexible configuration according to customer requirements.

Maintenance-free battery: Equip with battery switch for generator to avoid leakage.

Humanized design: a water inlet and hanging rod on the top, forklift slot, 4 maintenance doors, lock for control panel, emergency stop button, maintenance ladder etc….

More information, Please click Here to leave your message! Any query, Please contact us freely!


Applications:

Data center/Mining/Oil fields/Buildings/Outdoorworking/Power plant/Hospital/Factory/Telecom/Farming/Rental etc.


We can provide you:

Comprehensive power solutions

All-around technical support and counselling all the time

Customized genset service

Spare parts

Gensets operate training and commissioning

Factory direct price

OEM service


Specification
Quick Details
50Hz
60Hz

ABOUT CHP



Distributed energy

Distributed energy can make rational use of resources, reduce consumption and pollution, which also can be operated flexibly and economical.



Distributed Energy FeaturesCHP of heat and power features
1.Energy efficiency: above 84%;
2.Cascade utilization of energy can be realized;
3.Customized to provide resources and environmental benefits Maximize the efficiency of power solution
1.CHP - A mode of energy in which electricity and heat coexist
2.Distributed energy supply
3.Operated in grid-connected or isolated mode
4.Further use of generator waste heat to improve utilization rate


Cascade utilization of energy

100%FUEL
  ↓
High temperature
Above 700 ℃
  ↓
Moderate temperature
120℃-550℃
  ↓
Low temperature
Below 120 ℃
  ↓
Emission
  ↓
40% electricityheat with Cooling steamheating and desiccant application15% emissions

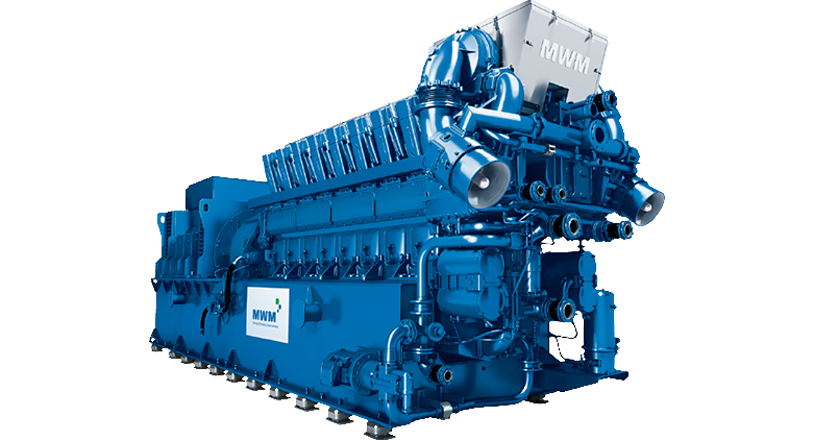

MWM Gas Generator Features



Highest effciency in its power range

1.Electrical effciency of up to 43.5 percent

2.Maximum proftability through rock bottom operating costs

3.More effciency through numerically optimized, low loss flow design


Optimized lube oil management

1.Lowest in class lube oil consumption: 0.1g/kWhel

2.Longer oil change intervals

3.Oil tank and integrated daily refll tank



Flanged genset concept

1.Vibration decoupled base frame for lower installation costs and reliable operation

2.Greater integrated lube oil volume

3.Integrated oil management



Improved turbo charger for a wide feld of deployment

1.Longer maintenance intervals

2.Wider suction air temperature window



Higher availability and longer useful life

1.Optimized combustion through evenly charged cylinders

2.Optimized combustion with lower peak pressure

3.Smoothly running, lowvibration genset



Maximum reliability

1.Very good island mode capability

2.Fulflls G1, G2 & G3 classes according to ISO 8528 with less than 10 steps in most applications


MODELElectrical PowerEfficiency(%)Nox mg/m3Applicable gas
LEESMWM  KWElectricalThermalTotal
LSMW400GSE3TCG3016V0840043.143.686.7500NG
42.841.984.7BIOG
LSMW600GSE3TCG3016V1260043.344.788500NG
42.14486.1BIOG
LSMW800GSE3TCG3016V1680043.544.688500NG
42.443.886.2BIOG
LSMW1000GSE3TCG3016V16S10004147.488.3500NG
LSMW1125GSE3TCG2020V12K112540.945.686.5500NG
LSMW1200GSE3TCG2020V12120043.643.386.9500NG
42.543.886.3BIOG
LSMW1500GSE3TCG2020V16K150040.945.786.6500NG
LSMW1560GSE3TCG2020V16156043.243.887500NG
4244.186.1BIOG
LSMW2000GSE3TCG2020V20200043.743.286.9500NG
42.644.286.8BIOG
LSMW3333GSE3TCG2032V12333343.942.686.5500NG
LSMW4300GSE3TCG2032V16430044.142.786.8500NG
37704339.982.8500BIOG


MODELElectrical PowerEfficiency(%)Nox mg/m3Applicable gas
LEESMWM  KWElectricalThermalTotal
LSMW400GSE3TCG3016V0840042.145.187.2500NG
41.743.485.1BIOG
LSMW600GSE3TCG3016V1260042.445.888.1500NG
41.743.685.3BIOG
LSMW800GSE3TCG3016V1680042.645.588.1500NG
41.943.385.1BIOG
LSMW1125GSE3TCG2020V12K112540.745.686.3500NG
LSMW1200GSE3TCG2020V12120043.443.286.6500NG
42.842.885.5BIOG
LSMW1500GSE3TCG2020V16K150040.645.786.3500NG
LSMW1560GSE3TCG2020V1615604343.886.7500NG
42.343.185.4BIOG
LSMW2000GSE3TCG2020V20200043.443.286.5500NG
42.743.386BIOG
LSMW3333GSE3TCG2032V12300043.942.185.9500NG
LSMW4300GSE3TCG2032V16400043.842.486.2500NG
351043.338.581.8500BIOG


FAQ
Q1:Are you trading company or manufacturer ?
A:We are factory.
Q2:what is your power range of your diesel generator?
A:we can provide power from 8KVA-4000KVA and comprehensive power solutions for you
Q3:How long is your delivery time?
A:4-6 weeks
Q4:What`s your MOQ?
A:1 set.
Q5:What is your terms of payment ?
A:T/T 30% in advance and TT 70% balance paid before shipment.
Q6:What is your warranty period?
A:Our warranty period is 1 year or 1000 running hours whichever comes first. But based on some special project, we can extended our warranty period.
Q7:Do you offer OEM service?
A:Yes.
Q8:How could I trust you?
A:Diesel Service & Supply stands behind the quality of all the generators and industrial power equipment we sell. If you are not convinced by the pictures, videos, check-in reports, load tests, customer experiences and sales associates` knowledge about the generator you are interested in, then we invite you to come visit our expansive yard and shop facility to witness a load test and see the professional operation we have going on here.
Q9:After i receive the genset what should i do ?
A:After you got the generator, please read the operation manual carefully. The User`s Manual come with the generator. With Operation, Installation , maintenance and repair guide.
